Spices Seasoning Powder Filling Line With Waste Rejection
Shanghai Dahe Packaging Machinery Co., Ltd. is one of the leading manufacturers and suppliers of spices seasoning powder filling line with waste rejection in China. With abundant experience, we warmly welcome you to buy durable spices seasoning powder filling line with waste rejection for sale here from our factory. Quality products and reasonable price are available.
I: Abstract:

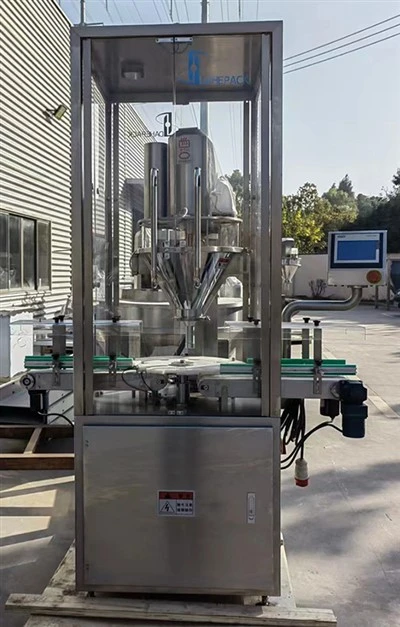

Our Automatic Auger type powder filling machine is a compact model applied to dose all kinds of dry powder both free flow and non-free flow powder into bottles/cans/jars/etc.
The machine provides powder metering and filling,inline weight checking and reject under or overweight filled containers function .
Bottles and cans are transmitted by conveyor belt combined with indexing drives and star wheel (rotary) table.Equipped with a photo eye sensor for bottle detection so to achieve a goal of bottle-fill and no-bottle no-fill.
II: Main Advantages:
*Fully stainless steel structure, open-type transparent hopper,can be cleaned without special tools.
*Servo Motor & servo driver to control screw. Servo controls turntable very stable.
*PLC control & touch screen for simple operation
*With weighing module
*Include hand-wheel to adjust filling head easily.
*With pneumatic can lifting device & vibration device to avoid material spilling out while filling.
*Weight Checking device, ensure all product qualified & no need extra selector machine.
*Memory function with 10 sets data at most. Improve worker efficiency.
*Screw/Auger can be changed-over to suit various material & weight.
|
Model |
DH-Q2-D100 |
DH-Q2-D160 |
DH-Q2-S80 |
|
Container size |
Ф20-100mm, H:15-150mm |
Ф30-160mm, H:50-260mm |
Ф30-80mm, H:20-120mm |
|
Filling weight |
1-500g |
10-5000g |
1-500g |
|
Accuracy |
≤100g, ≤±2%. 100-500g, ≤±1% |
≤500g, ≤±1%. ≥500g, ≤±0.5% |
≤100g, ≤±2% ≥100g, ≤±1% |
|
Stable Speed |
20-35 BPM |
20-35 BPM |
40-80 BPM |
|
Power |
3P AC208-415V 50/60HZ , 2kw |
3P AC208-415V 50/60HZ , 2.5kw |
3P AC208-415V 50/60HZ , 3.5kw |
|
Air-supply |
0.05m³/min |
||
|
Total weight |
310kg |
570kg |
600kg |
|
Overall Size |
1400*830*2080mm |
1840*1070*2420mm |
2000*1300*2200mm |
|
Hopper Volume |
35L |
50L |
40L |
|
Suit Material |
Condiment, Spices, cosmetic,coffee powder,solid drink,drugs,dextrose,powder additive,talcum powder,pesticide,dyestuff etc |
||
