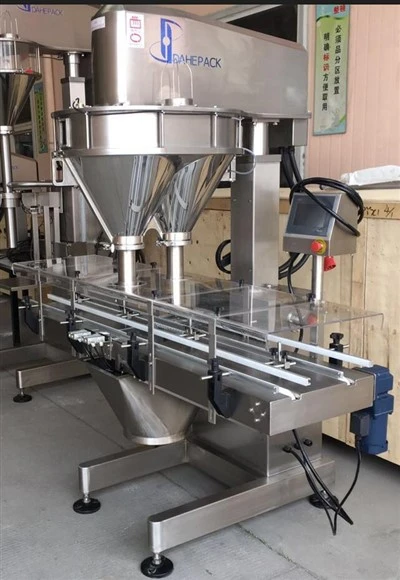

1 Head Dual Head Fine Powder Filling Packaging Line
Shanghai Dahe Packaging Machinery Co., Ltd. is one of the leading manufacturers and suppliers of 1 head dual head fine powder filling packaging line in China. With abundant experience, we warmly welcome you to buy durable 1 head dual head fine powder filling packaging line for sale here from our factory. Quality products and reasonable price are available.
I: Abstract:
Our Automatic Auger type powder filling machine is a compact model applied to dose all kinds of dry powder both free flow and non-free flow powder into bottles/cans/jars/etc.
The machine provides powder metering and filling,inline weight checking and reject under or overweight filled containers function .
Bottles and cans are transmitted by conveyor belt combined with indexing drives and star wheel (rotary) table.Equipped with a photo eye sensor for bottle detection so to achieve a goal of bottle-fill and no-bottle no-fill.
II: Main Advantages:
*Fully stainless steel structure, open-type transparent hopper,can be cleaned without special tools.
*Servo Motor & servo driver to control screw. Servo controls turntable very stable.
*PLC control & touch screen for simple operation
*With weighing module
*Include hand-wheel to adjust filling head easily.
*With pneumatic can lifting device & vibration device to avoid material spilling out while filling.
*Weight Checking device, ensure all product qualified & no need extra selector machine.
*Memory function with 10 sets data at most. Improve worker efficiency.
*Screw/Auger can be changed-over to suit various material & weight.
|
Model |
DH-Q2-D100 |
DH-Q2-D160 |
DH-Q2-S80 |
|
Container size |
Ф20-100mm, H:15-150mm |
Ф30-160mm, H:50-260mm |
Ф30-80mm, H:20-120mm |
|
Filling weight |
1-500g |
10-5000g |
1-500g |
|
Accuracy |
≤100g, ≤±2%. 100-500g, ≤±1% |
≤500g, ≤±1%. ≥500g, ≤±0.5% |
≤100g, ≤±2% ≥100g, ≤±1% |
|
Stable Speed |
20-35 BPM |
20-35 BPM |
40-80 BPM |
|
Power |
3P AC208-415V 50/60HZ , 2kw |
3P AC208-415V 50/60HZ , 2.5kw |
3P AC208-415V 50/60HZ , 3.5kw |
|
Air-supply |
0.05m³/min |
||
|
Total weight |
310kg |
570kg |
600kg |
|
Overall Size |
1400*830*2080mm |
1840*1070*2420mm |
2000*1300*2200mm |
|
Hopper Volume |
35L |
50L |
40L |
|
Suit Material |
Condiment, Spices, cosmetic,coffee powder,solid drink,drugs,dextrose,powder additive,talcum powder,pesticide,dyestuff etc |
||
