Dosing And Filling Of 10 To 25 kg Open-mouth Bags.
Shanghai Dahe Packaging Machinery Co., Ltd. is one of the leading manufacturers and suppliers of dosing and filling of 10 to 25 kg open-mouth bags. in China. With abundant experience, we warmly welcome you to buy durable dosing and filling of 10 to 25 kg open-mouth bags. for sale here from our factory. Quality products and reasonable price are available.
Descriptions:
dosing and filling of 10 to 25 kg open-mouth bags.

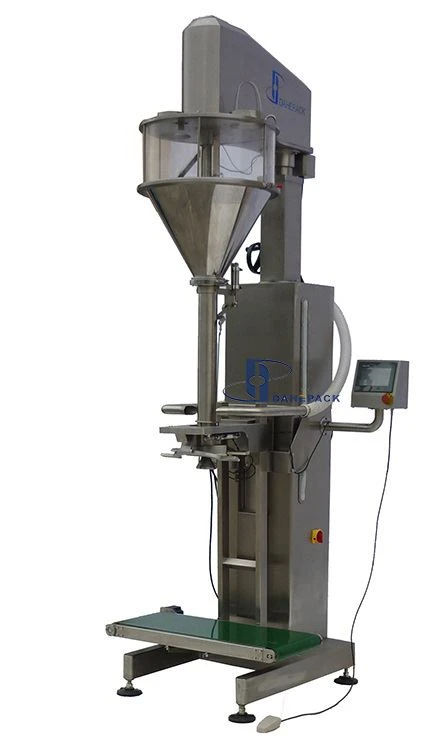

Powder Filling Machine Specification:
|
Model |
DH-B5-60L |
|
Machine Style |
Semi Automatic Gravimetric Auger Filler |
|
Fill Weight Range |
1-25KGS |
|
Bag Type |
Woven Open mouth bag, kraft paper open mouth bag, PE open mouth bag |
|
Control System |
Siemens PLC& Full Color HMI TECO Servo Drive and Motor SEW agitator Motor Schneider Contactor and relay |
|
Hopper Volume |
75L |
|
Fill Speed |
1-3Units/Min |
|
Fill Accuracy |
>1KGS <=+/-0.1-0.2% 10-20KGS <=+/-0.1-0.2% >20KGS <=+/-0.05-0.1% |
|
Container Type |
Premade open mouth Bag ,Drum, Bucket |
|
Product Type |
All kinds of dry powder |
|
Power Required |
3P AC208-415V 50/60HZ |
|
Air Pressure and consumption |
0.5Mpa or 0.4 M3／min |
|
Total Power |
3.12KW |
|
Machine Size |
1140*970*3200MM |
|
Machine Weight |
500KGS |
|
Functions |
Designed to fill accurate target weight of all kinds of dry powder into different type and size of containers. |
Introductions:
Net Weigh Auger Fillers accurately fill costly dry products by weight; It uses a custom bulk and dribble weight feedback method that calculates the weight of the product in-flight. PLC control and Siemens touch screen display.
With the dust collect function.

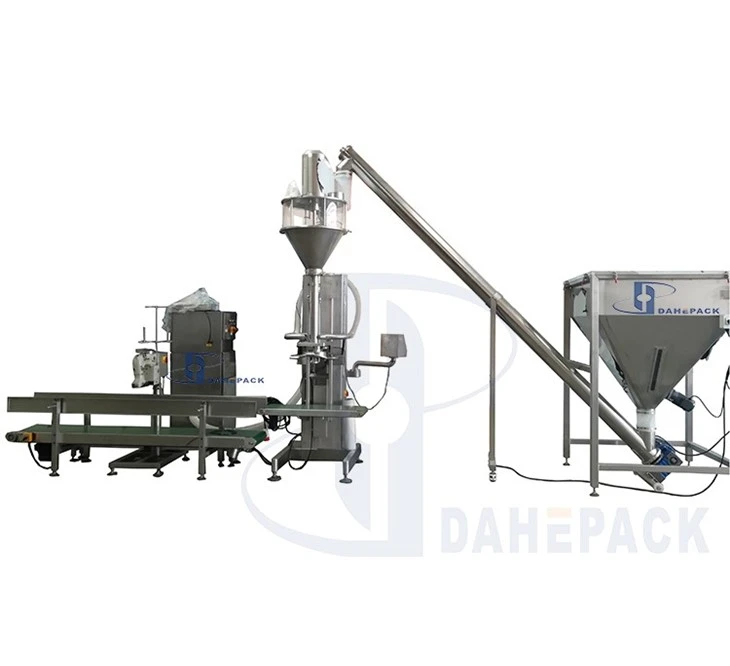

The big bag powder filling line include the machines as below:
Screw feeder
Powder filling machine
Heat sealing machine
Sewing machine
Check weigher
Metal detector
Conveyor
8.Dust Collector
9.Bag Turner and kicker
10.Bag Flattener
Frequently asked questions:
Q1:Are you factory or trading company?
A: We are factory located in shanghai china with 20 years manufacturing experience.
Q2: What machines you can make?
A: Auger filler, screw and vacuum feeder, Ribbon and paddle mixer, Vertical form fill and seal powder packaging machine, Complete Powder bottling/canning Production line etc.
Q3: Can i visit your factory and send our team for training before order delivery?
A: Yes, sure! Welcome to visit us and get a training or make FAT!
Q4: What's your warranty and after-sale service?
A: One year warranty against shipping date ,our engineer can be at your site for commissioning and installation or via whatsapp/skype/wechat to provide remote technical support.
Q5 : What is the payment term?
A: 30% T/T deposit and 70% T/T before delivery or you can come to inspect the machines before delivery then make final payment!
Q6:How long is the delivery time?
A: Single machines order 20-40days, Production line order 60-90days.
Q7:How to reach you?
A:By Cell Phone& Wechat& Whatsapp 0086-186-2117-5508
