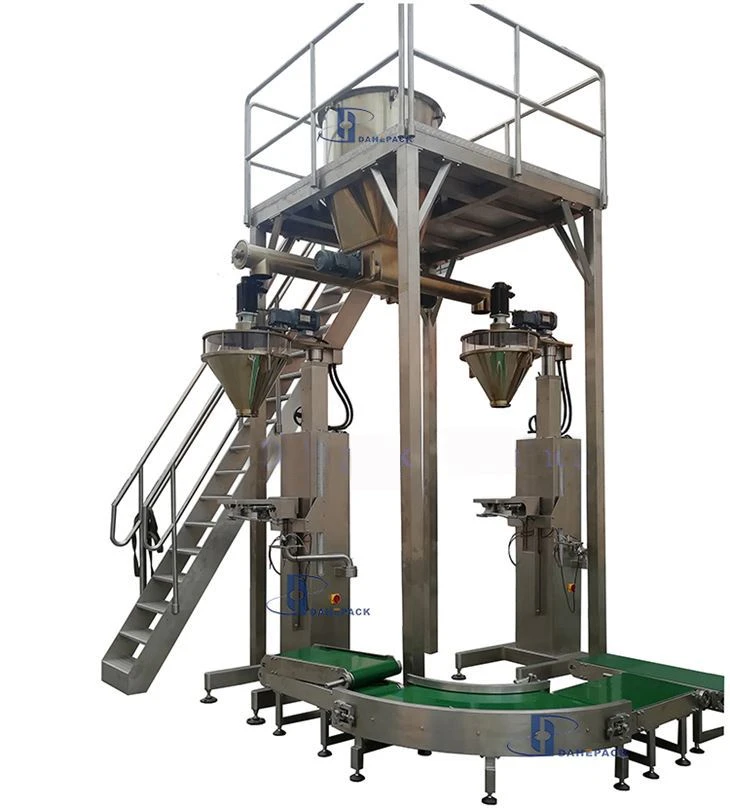

Directly Manufacture Two Module 25kg Bag Filler
The machine is suitable for dry syrup, talcum, spices powder, flour Free Flowing Powders Chemicals, Pharmaceutical Powers, Food & Beverages, Cosmetics powder, Pesticides Powder,etc
Send Inquiry
Product Introduction
Shanghai Dahe Packaging Machinery Co., Ltd. is one of the leading manufacturers and suppliers of directly manufacture two module 25kg bag filler in China. With abundant experience, we warmly welcome you to buy durable directly manufacture two module 25kg bag filler for sale here from our factory. Quality products and reasonable price are available.
10KG 25KG 30KG Powder Bag Filling Machine
Application
Products Description
25kg Powder Bag Filling Sealing Line
Hygienic 25kg bag filling and packing lines, bulk bag filling equipment and complete powder handling and conveying systems for the dairy, infant formula, nutrition and pharmaceutical industries.
Hygienic 25kg bag filling and packing lines, bulk bag filling equipment and complete powder handling and conveying systems for the dairy, infant formula, nutrition and pharmaceutical industries.
1 Screw Conveyor
Feed the Powder For the Bag Filling machine
2 Bag Filler
Bag filling systems for 1-50kg Powder Packing . Milk powder, Infant formula, dairy, nutritional and pharmaceutical materials
3 Heat Sealer
It is built to perform the closing and sealing functions on Dairy grade 25kg multi-wall kraft paper plastic lined powder bags
4 GK35-2C Sewing machine and Belt
It stitch the bags
5 Bag Turners and Bag Kickers
The function of a Bag Kicker or Bag Turner is to re-orient 25kg bags on conveyors from standing up vertically to laying flat
horizontally.
6 Bag press
it can let the 25kg bag lay and the bag level station
7 weight checker
A range of custom-made conveyers available, as well as very accurate check weighing scales
8 Metal detector
For the Metal Powder or particle checking
9 Rejection Sation and 10 Conveyor
It designed for 10-50kg bag Rejection
11 Inkjet Printer and Conveyor
Inkjet Coding Systems print data onto each bag as required by the production specifications. Technopak is able to provide a very
wide range of systems to suit customer requirements
12 Roller Conveyor
It is for bag transfer
Product Parameters
|
Model
|
DH-B5-20L (DCS-5B-1)
|
DH-B5-60L(DCS-5B-2)
|
|
Control System
|
PLC and Full color HMI
|
|
|
Dosing Mode
|
Real-Time Dual speed weigh-fill: High Speed bulk fill, slow speed fine fill.
|
|
|
Hopper Volume
|
56L
|
750L
|
|
Filling Weight Range
|
500G-10KGS
|
1KGS-30KGS
|
|
Filling Accuracy
|
500-1000g <+ -2g="">1000g <+>20KGS <+/-0.05-0.1%
|
|
|
Filling Capacity
|
4-8Units/Min
|
1-4Units/Min
|
|
Contact Parts
|
Fully Stainless Steel Construction and SUS304 for product contact parts.
|
|
|
Total Power
|
2.7KW
|
3.2KW
|
|
Power Supply
|
3P 208-415V 50/60HZ
|
|
|
Overall Size
|
1135*890*2500MM
|
1135*970*3200MM
|
|
Notes: All above are our standard machine configuration, NON-standard machine can be custom-made as per request .
|
||
